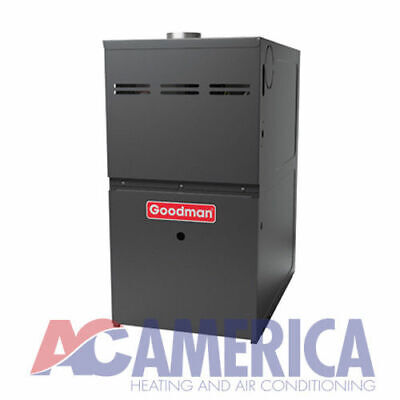

2.5 Ton Gas Furnace

2.5 Ton 14 SEER AC / 80% 80K Btu Down-flow Gas Furnace / Coil GSX140301 AC Condensing Unit GCES800804BN 80,000 Btu Natural Gas furnace (Downflow) CAPF3137B6 Coil **Any Questions contact our Pricetronic support 888-877-9811** Features GSX140301 Energy efficient Scroll compressor Factory installed filter drier Factory installed suction line accumulator Service valves with sweat connections and easy access to gauge ports 10-year compressor. 10-year parts warranty. Copper tube/aluminum fin coil Fully charged R410A system Electric heat kit available as a field-installed option Heavy-gauge galvanized-steel cabinet with attractive Architectural Gray powder-paint finish Specifications – GSX140301 Tonnage 2.5 Ton Cooling Capacity (Btu) 30,000 Btu SEER / EER 14.0 / 12.0 Sound Level 74 DB Liquid Line / Valve Size 3/8” / 3/8” Suction Line / Valve Size 3/4” / 3/4” Drain Size 3/4 Voltage-HZ / Phase 208-230-60 / 1 Phase Max Breaker Size 20 Amps Refrigerant Type / Charge R410 A / 85 oz. Unit Dimensions 29" W x 29" D x 32 1/2" H Shipping / Operating Weight 211 / 193 Lbs. Features GCES Furnaces Heavy duty aluminized steel dual diameter tubular heat exchanger Single stage gas valve Durable hot surface ignitor Quiet single speed draft induced Color coded low voltage terminals Vertical or Horizontal ( requires CHPF coil ) installation Multi-speed blower motor Convenient left or right connection for gas and electrical service Specifications – GCES800804BN  Down-flow Heat Input Btu 80,000 Natural Gas Output Btu 64,000 LP Gas Output Btu 64,000 Available AC Up to 4 tons Supply Plenum Opening 16” W x 19 1/2” D Number of Burners 4 Max Breaker Size 15 Amps Unit Dimensions 17 1/2" W x 28" D x 33 1/2" H Shipping Weight 105 Lbs. Features CAPF3137B6 All aluminum evaporator coil Check flowrater Split seam for easy access Specifications – CAPF3137B6 Nominal Tons Up to 3 Liquid Connection 3/8” Suction Connection 3/4“ Unit Dimensions 17 1/2" W x 22" D x 30" H Shipping Weight 53 Lbs.
